| INDOOR | 42QSM105D8S | ||
| OUTDOOR | 38QSM105D8S | ||
| Refrigerant type | R32 | ||
| Power supply (Volts-Phase-Hz) | 220-240V
/1/50Hz |
||
|
COOLING |
Capacity – rated | kW | 10.15 |
| Capacity – range (min
~ max) |
kW |
2.95 ~ 12.05 |
|
| Efficiency (rated) | EER | 3.14 | |
| Operating current (rated) |
A |
13.79 |
|
|
HEATING |
Capacity – rated | kW | 10.87 |
| Capacity – range (min
~ max) |
kW |
2.43 ~12.82 |
|
| Efficiency (rated) | COP | 3.79 | |
| Operating current (rated) |
A |
12.40 |
|
|
INDOOR UNIT |
Dimension (WxDxH) | mm | 1360x774x249 |
| Net weight | kg | 39.9 | |
| Airflow volume (H/M/L) |
m3/h |
2213/1761/1173 |
|
| ESP Rated / max | Pa | 37 / 160 | |
|
OUTDOOR UNIT |
Dimension (WxDxH) | mm | 946x410x810 |
| Net weight | kg | 70 | |
| Operating noise (sound power) (H) | dBA (@ swl) |
67 |
|
| Cooling usable temperature range | ˚C | 0~50 | |
| Heating usable temperature range | ˚C | -20~24 | |
|
PIPE SIZE |
Liquid line Ø | (mm) | 9.52 |
| Gas line Ø | (mm) | 15.9 | |
| Coupler style | – | flare | |
| Drain (inside diameter) Ø |
mm |
21 |
|
| Maximum length | m | 75 | |
| Chargeless length | m | 15 | |
| Maximum height difference |
m |
30 |
|
🚚 Check Delivery/Pickup Options For Your Postcode
Overview

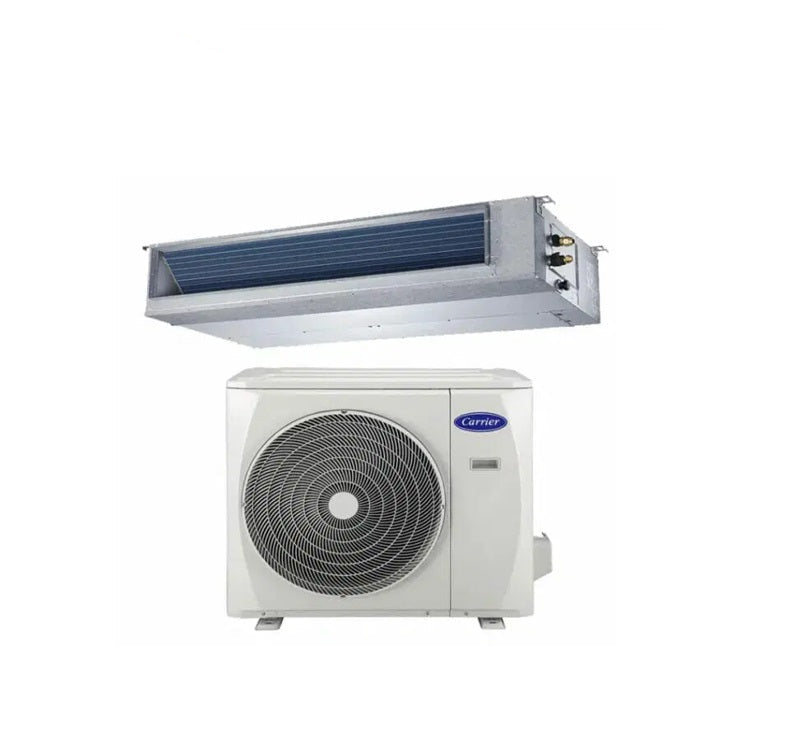

Carrier 42QSM105D8S / 38QSM105D8S 10.2kW Inverter Slim Ducted System
The Carrier 42QSM105D8S / 38QSM105D8S 10.2kW Inverter Slim Ducted System offers advanced climate control with a compact design. With a powerful 10.2kW capacity, it efficiently delivers both cooling and heating. This system features a sleek indoor unit and a robust outdoor unit, both designed to operate quietly and efficiently. Perfect for maintaining comfort in larger spaces, it integrates seamlessly into modern Australian homes, providing reliable performance year-round.
Specifications
