Overview

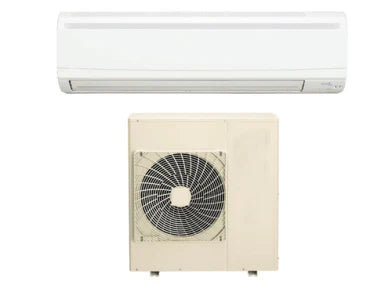

Daikin Sky Air FAA100B-VC2Y 10kW Reverse Cycle Split System Air Conditioner
Experience unparalleled comfort with the Daikin Sky Air FAA100B-VC2Y. This 10kW split system air conditioner offers a sleek, compact design complemented by a sophisticated fresh white finish. It boasts advanced features like auto swing, wide-angle louvers, and a programme 'Dry' mode for optimised dehumidification. Designed for both cooling and heating, it ensures even temperature distribution across your space. With flexible installation options and easy maintenance, this system is perfect for both residential and commercial applications. Enjoy energy savings with interlock control and seamless integration with centralised control systems.
Indoor: FAA100BVMA
Outdoor: RZAV100C2Y1
Specifications
| Model Name | Indoor unit | FAA100BVMA | ||
| Outdoor unit | RZAV100C2Y1 | |||
| Power supply | 3 Phase, 380-415V, 50Hz | |||
| Cooling capacity Rated (Min. – Max.) | kW | 10.0 (5.0-11.2) | ||
| Heating capacity Rated (Min. – Max.) | kW | 11.2 (5.1-12.5) | ||
| Power consumption | Cooling | kW | 3.11 | |
| Heating | kW | 3.48 | ||
| EER | Cooling | kW/kW | 3.22 | |
| COP | Heating | kW/kW | 3.22 | |
| AEER | Cooling | 3.16 | ||
| ACOP | Heating | 3.17 | ||
| TCSPF (Cooling) Commercial / Residential | Hot | 5.03 / 4.63 | ||
| Average | 5.12 / 4.17 | |||
| Cold | 5.48 / 4.31 | |||
| HSPF (Heating) Commercial / Residential | Hot | 4.66 / 4.64 | ||
| Average | 4.25 / 3.95 | |||
| Cold | 3.77 / 3.42 | |||
| Indoor unit | Colour | Fresh White | ||
| Airflow rate (H / M / L) | /s | 433 / 383 / 317 | ||
| m3/min | 26.0 / 23.0 / 19.0 | |||
| Sound pressure level (H / M / L) | dB(A) | 49.0 / 45.0 / 41.0 | ||
| Dimensions (HXWXD) | mm | 340X1,200X240 | ||
| Machine weight | kg | 17 | ||
| Certified operation range | Cooling | °CWB | 14 to 25 | |
| Heating | °CDB | 15 to 27 | ||
| Outdoor | Colour | Ivory White | ||
| unit | Compressor | Type | Hermetically sealed swing type | |
| Motor output | kW | 3.30 | ||
| Refrigerant charge (R-32) | kg | 3.75 (Charged for 30 m) | ||
| Sound pressure level | Cooling / Heating | dB(A) | 51 / 53 | |
| Night quiet mode | dB(A) | 47 | ||
| Sound power level | dB(A) | 70 | ||
| Dimensions (HXWXD) | mm | 1,430X940X320 | ||
| Machine weight | kg | 93 | ||
| Certified operation range | Cooling | °CDB | -5 to 50 | |
| Heating | °CWB | -15 to 15.5 | ||
| Piping connections | Liquid (Flare) | mm | o/ 9.5 | |
| Gas (Flare) | mm | o/ 15.9 | ||
| Drain | Indoor unit | mm | VP13 (I.D. o/ 13XO.D. o/ 18) | |
| Outdoor unit | mm | o/ 25.0 (Hole) | ||
| Max. interunit piping length | m | 75 (Equivalent length 90) | ||
| Max. installation height difference | m | 30 | ||
| Heat insulation | Both liquid and gas piping | |||
