Overview

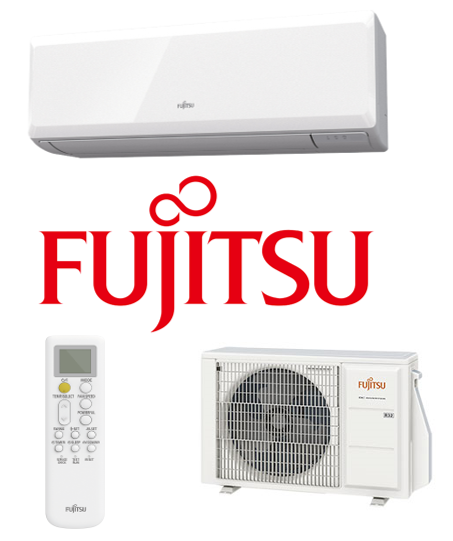

FUJITSU ASTH22KNTA 6.0kW Comfort Reverse Cycle Inverter Split System
The FUJITSU ASTH22KNTA 6.0kW Comfort Reverse Cycle Inverter Split System is designed to deliver high energy efficiency with its robust reverse cycle technology. Ideal for both heating and cooling, it ensures a comfortable indoor climate throughout the year. With a focus on quiet operation and advanced features, this system combines reliability and performance seamlessly. Perfect for modern Australian homes seeking efficient and effective climate control solutions.

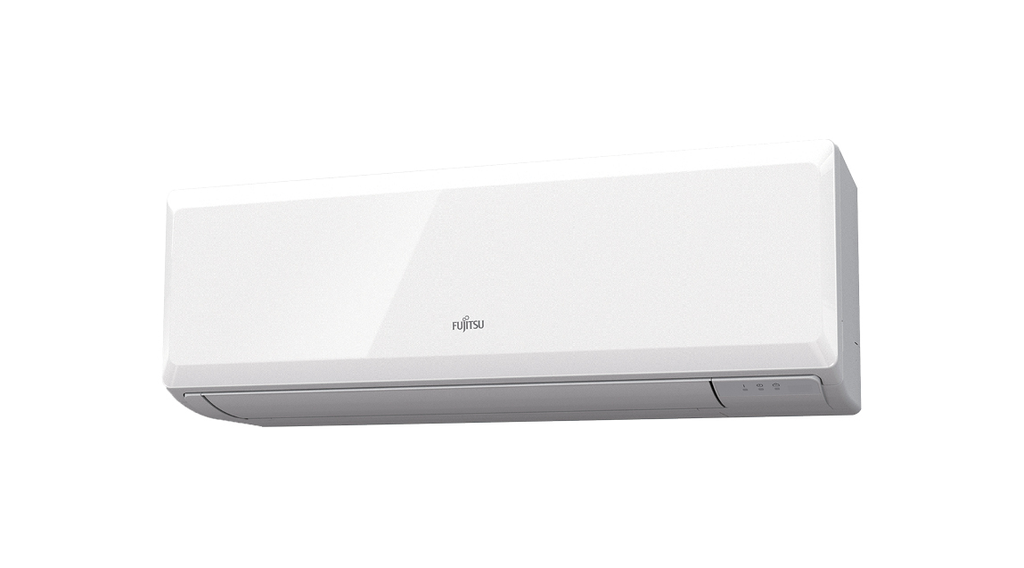

Indoor: ASTH22KNTA

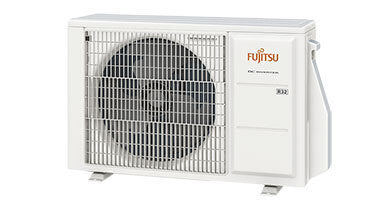

Outdoor: AOTH22KNTA
Specifications
| Model No. | Indoor Unit | ASTH22KNTA | ||
| Outdoor Unit | AOTH22KNTA | |||
| Power Source | V/ Ph / Hz | 220-240 1 1 / 50 | ||
| Capacity | Cooling | kW | 6 | |
| Heating | kW | 6.5 | ||
| Input Power | Cooling/Heating | kW | 1.78 | |
| EER | Cooling | kW/kW | 3.37 | |
| COP | Heating | 3.51 | ||
| Star Rating | Cooling: Hot/Average/Cold | 3.5 / 3.5 / 3.5 | ||
| Heating: Hot/Average/Cold | 3/2/ 1.5 | |||
| Max. Operating Current | A | 1 3.5 | ||
| Recommended Breaker Size | A | 16 | ||
| Sound Pressure Level | Indoor (Cooling) | Quiet/High | dBA | 31 148 |
| Indoor (Heating) | Quiet/High | 31 148 | ||
| Outdoor (Cooling / Heating) | High | 54/ 53 | ||
| Sound Power Level | Outdoor | High | 68 | |
| Airflow Rate | Indoor (Cooling) | Quiet/High | m3/h | 420 / 880 |
| Indoor (Heating) | Quiet/High | 420 / 880 | ||
| Dimensions (H x W x D) | Indoor | mm | 270 x 834 x 232 | |
| Outdoor | mm | 632 x 799 x 290 | ||
| Net Weight | Indoor | kg | 1 1 | |
| Outdoor | kg | 36 | ||
| Connection Pipe Diameter (Liquid / Gas) | mm | 6.35 / 12.70 | ||
| Drain Hose Diameter (I.D./O.D.) | 13.0 / 15.8 to 16.7 | |||
| Max Pipe Length (Pre-Charge) | m | 25 (1 5) | ||
| Max Height Difference | 20 | |||
| Operation Range | Outdoor | Cooling | OCDB | -10 to 50 |
| Heating | -15 to 24 | |||
| Refrigerant | Type (Global Warming Potential) | R32 | ||
| Charge | kg | 960 | ||
