Daikin 18kW Ducted Air Conditioning Inverter Ducted System Three phase - FDYQN180
Best For:
Heating or cooling your entire home
Larger houses
Houses with limited roof space and outdoor space All Daikin air conditioners exceed MEPS requirements, in line with Daikin’s commitment to providing energy efficient, quiet, simple to use and reliable air conditioning solutions.

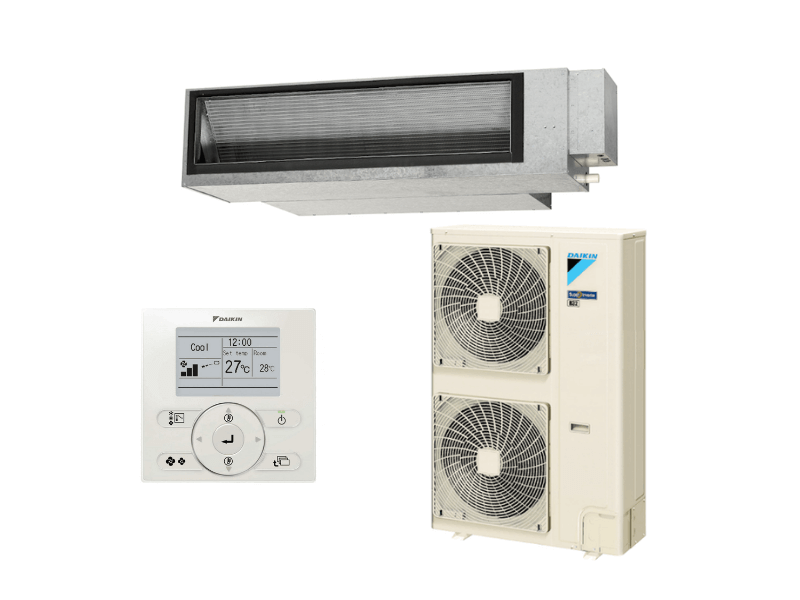

FDYQN180LC-M 18.0kW Inverter Ducted System | Back lit Controller 3 Phase

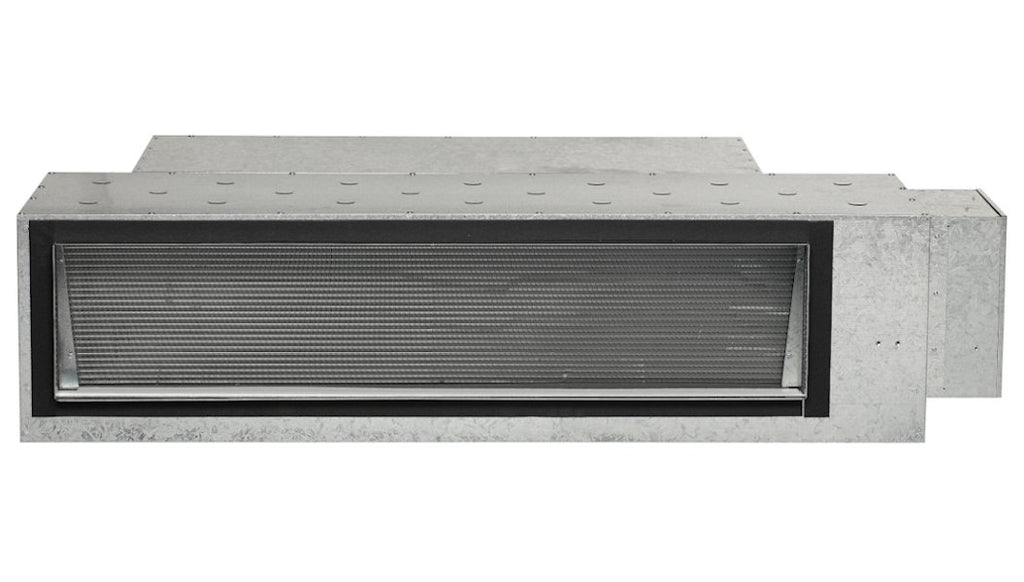

Indoor: FDYQN180LCV1

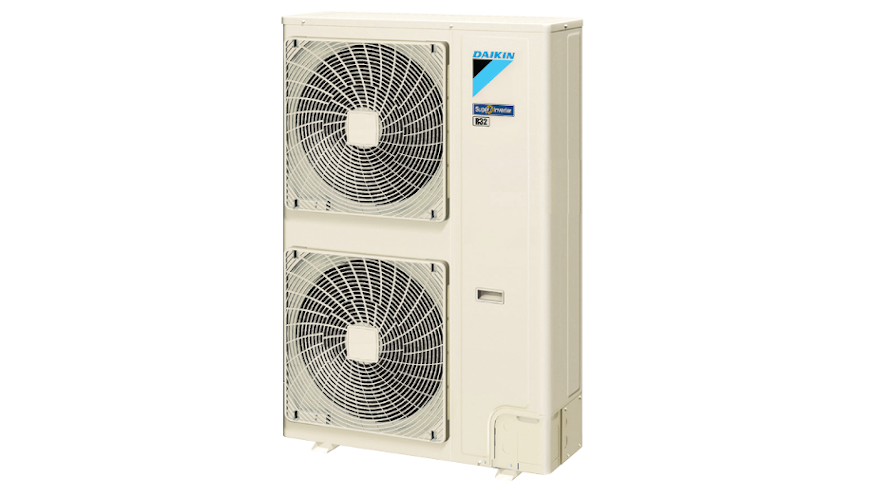

Outdoor: RZQ180M2Y1

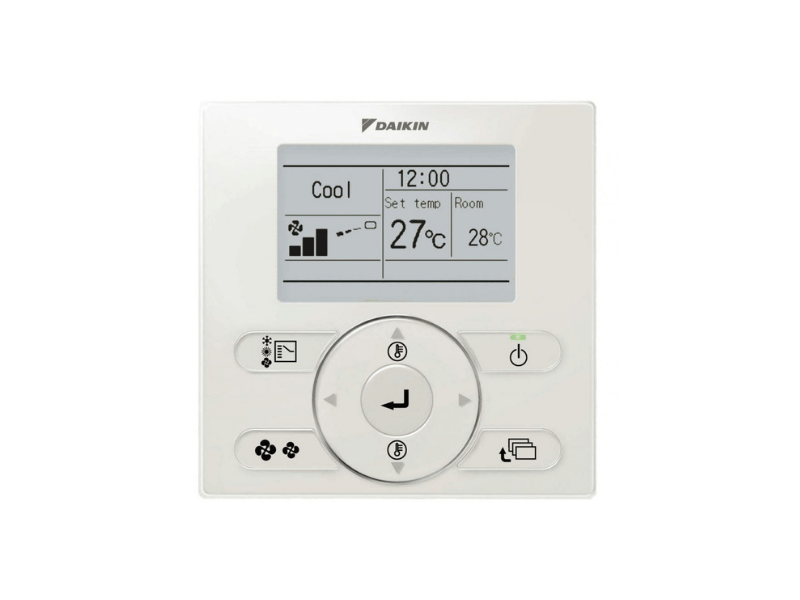

Controller: BRC1E63

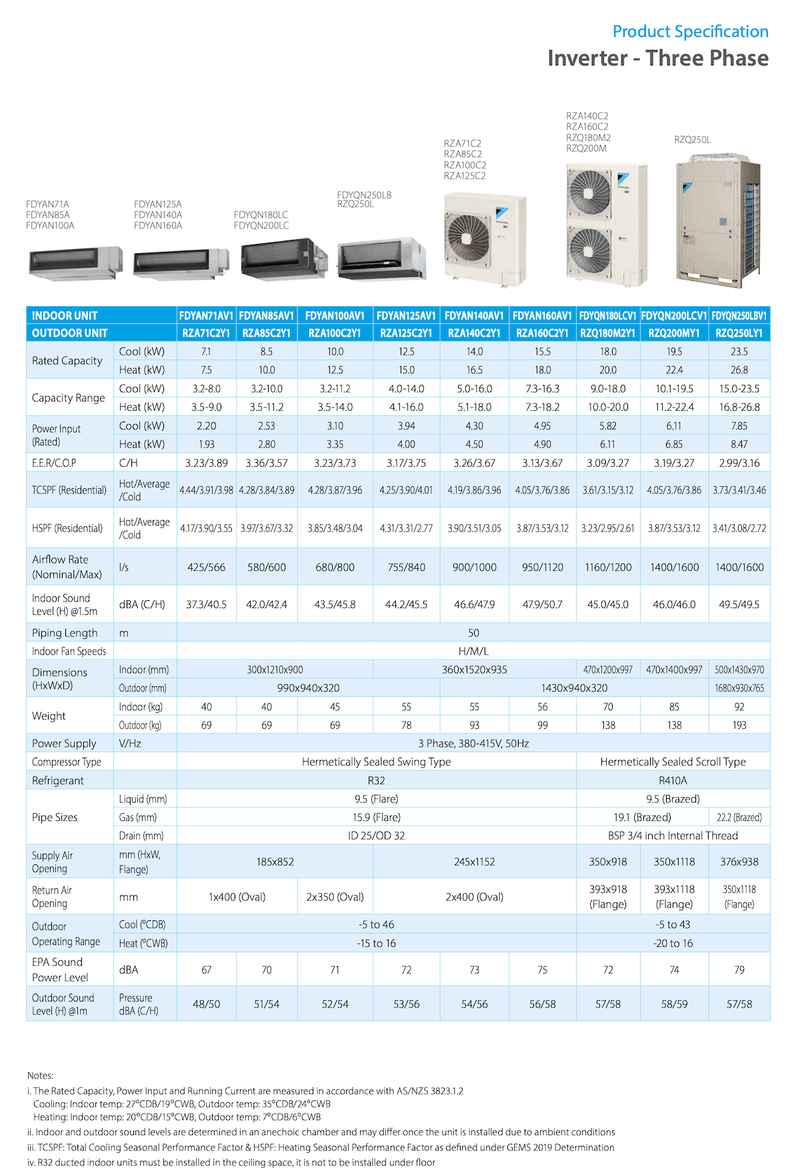

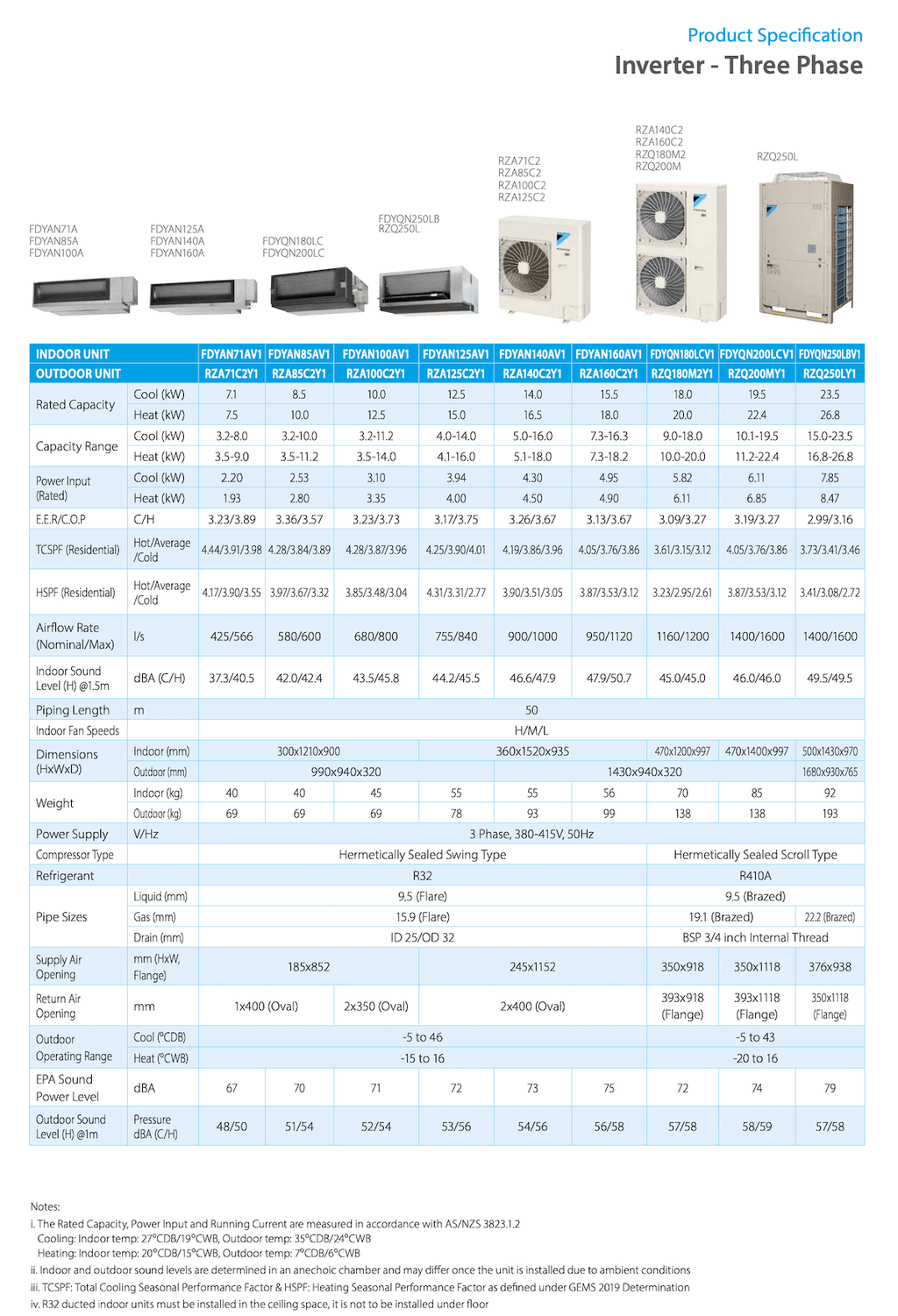

Specifications
| INDOOR UNIT | FDYQN180LCV1 | |
| OUTDOOR UNIT | RZQ180M2Y1 | |
| Rated Capacity | Cool (kW) | 18 |
| Heat (kW) | 20 | |
| Capacity Range | Cool (kW) | 9.0 - 18.0 |
| Heat (kW) | 10.0 - 20.0 | |
| Power Input (Rated) | Cool (kW) | 5.82 |
| Heat (kW) | 6.11 | |
| E.E.R./C.O.P. | Cool/Heat | 3.09 - 3.27 |
| Air Flow Rate (Rated) | I/S | 1160 |
| Indoor Sound Level (@1.5m) | dBA | 45.0 |
| Piping Length | (m) | 50 |
| Indoor Fan Speeds | H/M/L | |
| Dimensions (HxWxD) | Indoor (mm) | 470 x 1200 x 997 |
| Outdoor (mm) | 1430 x 940 x 320 | |
| Weight | Indoor(kg) | 70 |
| Outdoor(kg) | 138 | |
| Power Supply | V/Hz | 3 Phase, 380-415v, 50Hz |
| Compressor Type | Hermetically Sealed Scroll Type | |
| Refrigerant | R410A | |
| Pipe Sizes | Liquid (mm) | 9.5 (Brazed) |
| Gas (mm) | 19.1 (Brazed) | |
| Drain (mm) | BSP 3/4 inch Internal Thread | |
| Supply Air Opening | mm (HxW, Flange) | 350x918 |
| Return Air Opening | mm (Oval) | 393x918 (Flange) |
| Outdoor Operating Range | Cool (°CDB) | - 5 to 43 |
| Heat (°CWB) | - 20 to 16 | |
| Outdoor Sound Level (H) @1m | Pressure dBA (C/H) | 57/58 |
