Daikin 16kW Inverter Ducted Air Conditioner FDYAN160

Roll over image to zoom in Click on image to zoom

Daikin 16kW Inverter Ducted Air Conditioner FDYAN160

DaikinModel: FDYAN160AV1 / RZA160C2V1

Inverter Range: - 16kW

5.0kW
$2,798.00
6.0kW
$3,084.00
7.1kW
$3,319.00
8.5kW
$3,724.00
10kW
$4,017.00
12.5kW
$4,622.00
14kW
$5,275.00
16kW
$5,814.00
18kW
$5,962.00
20kW
$6,259.00
25kW
$7,769.00

Price:

$5,814.00 $6,653.00

Quantity:

🚚 For delivery / pickup options check calculator below

Estimate arrival between Apr 08 and Apr 10

Apr 03rdOrder Today

Order will take 1-2 days to prepare (subject to stock availability)

Apr 04th - Apr 05thOrder Dispatched

Order will start to be delivered

Apr 08th - Apr 10thDelivered

Estimated arrival date range：Apr 08th - Apr 10th

ADD EXTRA:

$433.00

$287.00

~~$375.00~~

Country

State

Postcode

Why Choose Oz Air Online

Full Australian Manufacturer’s Warranty
Brand new Australian Stock
No Factory Seconds

Overview

DAIKIN FDYAN160A-CV C15.5kW H18kW Inverter Ducted System | 1 Phase

Best For:
Heating or cooling your entire home
Small to large houses
Houses with limited roof space and outdoor space All Daikin air conditioners exceed MEPS requirements, in line with Daikin’s commitment to providing energy efficient, quiet, simple to use and reliable air conditioning solutions.

Indoor: FDYAN160AV1
Outdoor: RZA160C2V1
Controller: BRC1E63

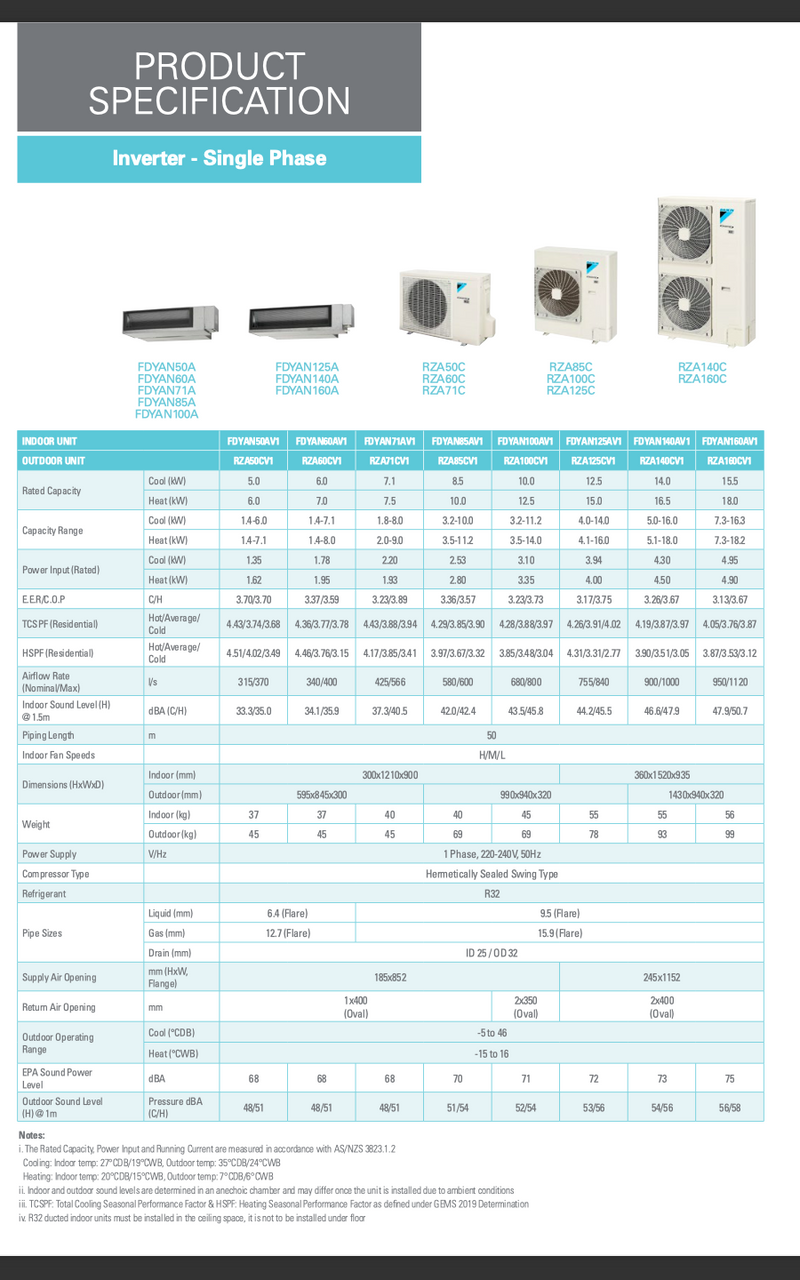

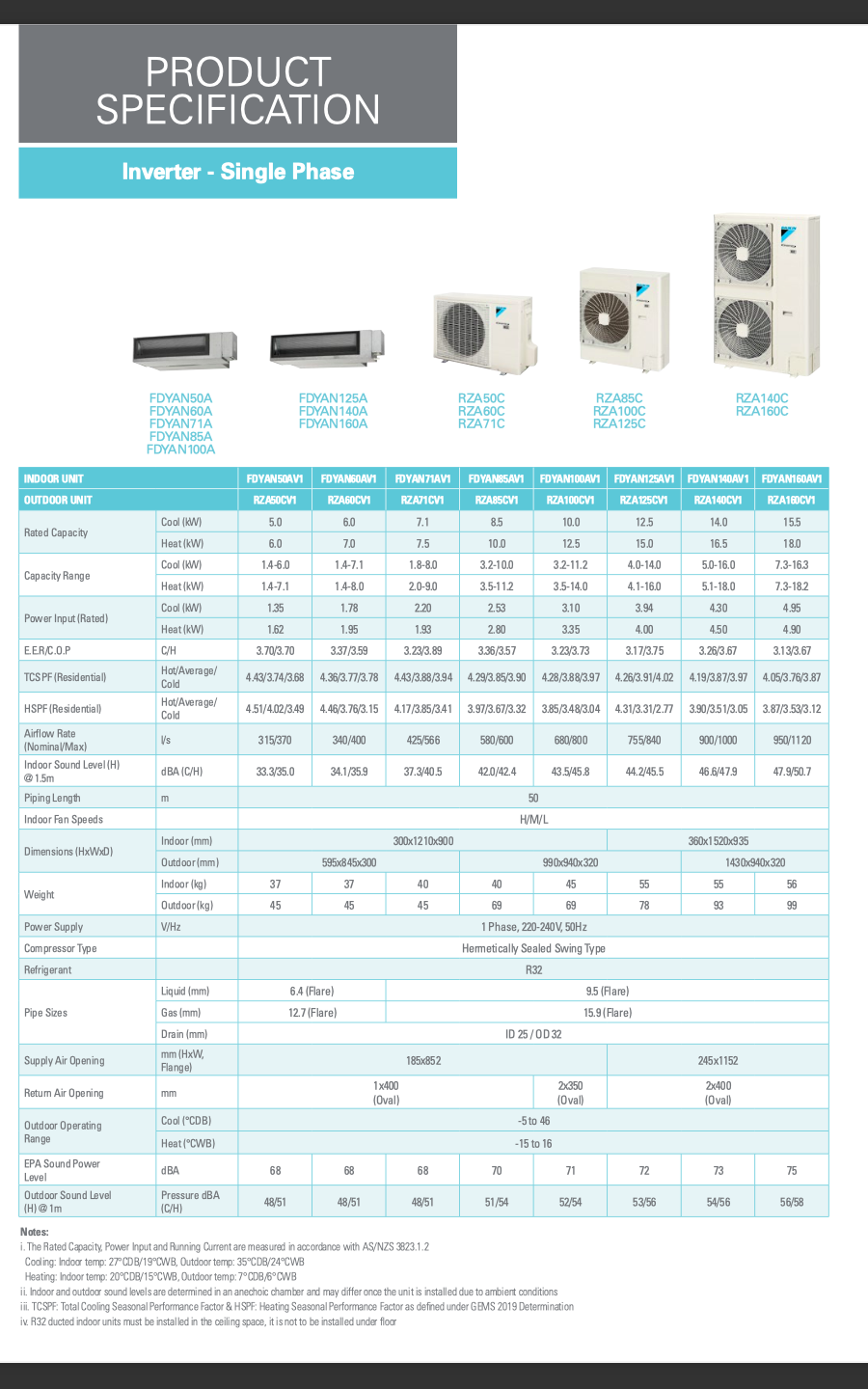

Specifications

INDOOR UNIT		FDYAN160AV1
OUTDOOR UNIT		RZA160C2V1
Rated Capacity	Cool (kW)	15.5
Rated Capacity	Heat (kW)	18.0
Capacity Range	Cool (kW)	7.3-16.3
Capacity Range	Heat (kW)	7.3-18.2
Power Input (Rated)	Cool (kW)	4.95
Power Input (Rated)	Heat (kW)	4.90
E.E.R./C.O.P.	Cool/Heat	3.13/3.67
Air Flow Rate (Rated)	I/S	950
Indoor Sound Level (@1.5m)	dBA	47.9/50.7
Piping Length	(m)	50
Indoor Fan Speeds		H/M/L
Dimensions (HxWxD)	Indoor (mm)	360x1520x935
Dimensions (HxWxD)	Outdoor (mm)	1430x940x320
Weight	Indoor(kg)	56
Weight	Outdoor(kg)	99
Power Supply	V/Hz	1 Phase, 220-240V, 50Hz
Compressor Type		Hermetically Sealed Swing Type
Refrigerant		R32
Pipe Sizes	Liquid (mm)	9.5 (Flared)
	Gas (mm)	15.9 (Flared)
	Drain (mm)	ID 25 / OD 32
Supply Air Opening	mm (HxW, Flange)	245x1152
Return Air Opening	mm (Oval)	2x400 (Oval)
Outdoor Operating Range	Cool (°CDB)	- 5 to 46
Outdoor Operating Range	Heat (°CWB)	- 15 to 16
EPA Sound Power Level	dBA	75
Outdoor Sound Level (H) @1m	Pressure dBA (C/H)	56/58

Stock Avail.

We do not list stock levels on our website. This is due to us carrying such a large range of products, some products are sourced direct from the supplier and some are in our local warehouses in Sydney, Melbourne, Brisbane or Perth.

When you place your order it may be in our warehouse or we may need to source it from our suppliers.

Each order is MANUALLY processed, when you place your order, the stock availability is checked, within 24 - 48 business hours.

If there is a supply issue, one of our friendly customer service staff will then call or email you to confirm your order and advise you as to the stock availability.
