Overview

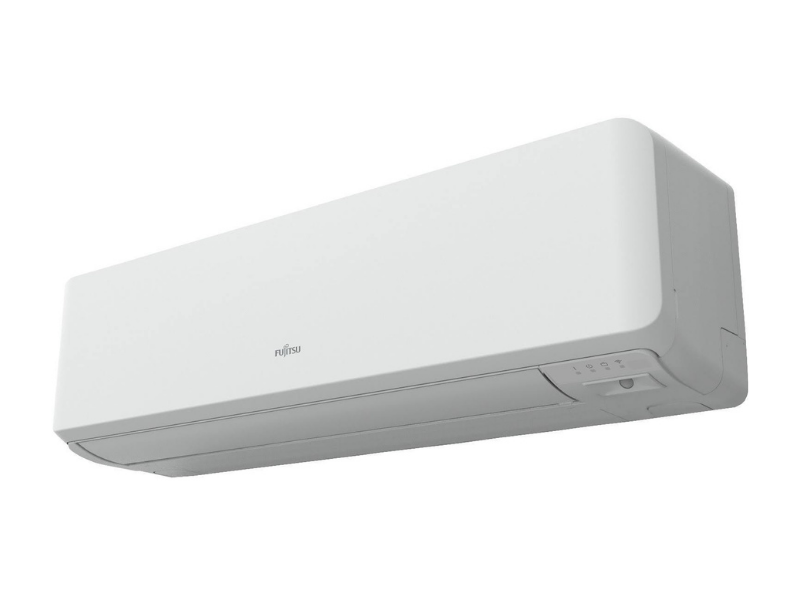

Fujitsu C7.1kW H8kW Reverse Cycle Inverter Split System ASTG24KMTC-set
The Lifestyle Range of wall mounted reverse cycle air conditioning units are Fujitsu General's most efficient with some models reaching a 5 star energy rating.
The new reverse cycle Lifestyle range is designed to be less obtrusive and integrate seamlessly with the room's interior, featuring a new matte finish.
With energy management features include human sensor control, economy mode and weekly timers.
NEW Fujitsu Lifestyle KMTC Brochure.pdf
Features
SLIM AND MODERN DESIGN Designed to be less obtrusive and integrate seamlessly with the room’s interior, the new ASTG18/22/24KMTC models within the range are slimmer than the previous Fujitsu lifestyle units by 30mm* in depth. The matte finish and smooth edges create a modern aesthetic to suit contemporary homes. |
ENERGY EFFICIENT The lifestyle range of wall mounted reverse cycle air conditioning units are Fujitsu General’s most efficient. An improved star rating for heating mode has been achieved across the ASTG18/22/24KMTC product range, along with an improved star rating in cooling mode on the ASTG18KMTC model. Other energy management features include Human Sensor Control, Economy Mode and Weekly Timers. |
HUMAN SENSOR CONTROL An intelligent feature which detects movement of people to deliver optimum efficiency and temperature control. When in operation, if the sensor detects no movement in a room after 20 minutes, the air conditioner will automatically switch to energy saving operation, modifying the temperature to minimise energy consumption. When movement is detected within the room, the air conditioner reverts back to its previous setting. |
AIR QUALITY Air quality is maintained throughout the home with the apple- catechin# filter. Fine dust, invisible mould spores and harmful microorganisms are absorbed onto the filter by static electricity and further growth is inhibited and deactivated by the polyphenol ingredient extracted from apples. |
UPGRADED HEAT EXCHANGER The heat exchange efficiency has been significantly improved with the hi-density and large heat exchanger. |
COMFORT AND CONVENIENCE Comfort and convenience features across the lifestyle range allow the air conditioning unit to reach a desired room temperature quickly and efficiently. The units indoor and outdoor fans can run at a lower speed for quieter operation as is recognised whilst operating in low noise and super quiet modes. |
Specification
Model No. Indoor Unit | ASTG24KMTC |
Model No. Outdoor Unit | AOTG24KMTC |
Operation Type | Reverse Cycle |
Power Source V / Ph / HZ | 240 / 1 / 50 |
Capacity Cooling kW | 7.10 (1.10-8.30) |
Capacity Heating kW | 8.0 (1.10-10.10) |
Power input Cooling kW | 2.08 (0.24-3.15) |
Power input Heating kW | 1.91 (0.14-3.00) |
EER | 3.41 |
COP | 4.19 |
Star Rating Cooling | 3.5 |
Star Rating Heating | 3 |
Running Current C/H amps | 8.9 / 8.3 |
Moisture Removal l / hr | 2.7 |
Noise Level Cooling dBA | 49 / 29 |
Noise Level Heating dBA | 54 / 52 |
Air Circulation (Indoor - High Fan) C/H | 325 / 325 |
Net Dimensions Indoor mm | 280 x 980 x 240 |
Net Dimensions Indoor kg | 12.5 |
Net Dimensions Outdoor mm | 716 x 820 x 315 |
Net Dimensions Outdoor kg | 42 |
Piping Connections (Liquid / Suction) mm | Ø6.35 / Ø12.70 |
Max. Pipe Length (Precharged Length) m | 30 (15) |
Max. Height Difference m | 25 |
Operation Range Cooling °CDB | -10 to 46 |
Operation Range Heating °CDB | -15 to 24 |
Refrigerant | R32 |
