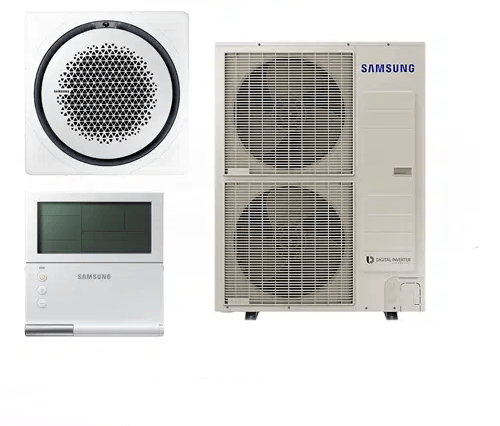

Samsung 360° Cassette 4 Way 7.1kW AC071TN4PKG/SA
Experience the ultimate in climate control with the Samsung 360° Cassette 4 Way 7.1kW system. Designed for seamless integration and exceptional performance, this unit offers efficient cooling and heating with a sleek, modern design. The 360° air flow ensures even distribution, making it ideal for any space. Equipped with a MWR-WE13N Wired Remote Controller for precise adjustments, this system provides reliable comfort year-round.
Indoor: AC071TN4PKG
Outdoor: AC071TXAPKG/SA
Controller: MWR-WE13N Wired Remote Controller
Specifications
| Model | Indoor Unit | AC071TN4PKG/SA | |
| Outdoor Unit | AC071TXAPKG/SA | ||
|
Capacity |
Refrigerant | R32 | |
| Cooling (Min/Std/Max) | kW | 2.00 / 7.10 / 8.00 | |
| Heating (Min/Std/Max) | kW | 1.50 / 8.00 / 9.00 | |
|
Energy Grade |
Energy Grade (Cooling) | EER | 3.70 |
| Energy Grade (Heating) | COP | 4.00 | |
| Energy Grade (Cooling) | AEER | 3.69 | |
| Energy Grade (Heating) | ACOP | 3.99 | |
| Electrical | MCA | A | 18.0 |
| MFA | A | 20.6 | |
|
Indoor Unit |
|||
| Air Flow Rate (H, M, L) – Cooling | l/s | 350/300/250 | |
| Air Flow Rate (H, M, L) – Heating | l/s | 350/300/250 | |
| Sound Pressure @ 1.5m (H/M/L) | dB(A) | 35 / 32 / 28 | |
| Sound Power | dB(A) | 53 | |
| Net Weight | kg | 23.5 | |
| Shipping Weight | kg | 28.3 | |
| Unit Dimensions (WxHxD) | mm | 947 x 365 x 947 | |
| Shipping Dimensions (WxHxD) | mm | 990 x 414 x 990 | |
| Drain Pump | Included | ||
| Drain Lift / Displacement | mm / L/hr | 750 / 24 | |
| Drain connection size | mm | OD 32 / ID 25 | |
|
Outdoor Unit |
|||
| Compressor Type | Twin BLDC | ||
| Sound Pressure @ 1m (Cool/Heat) | dB(A) | 50 / 52 | |
| Sound Power | dB(A) | 66 | |
| Net Weight | kg | 51.0 | |
| Shipping weight | kg | 55.0 | |
| Net Dimensions (WxHxD) | mm | 880 x 798 x 310 | |
| Shipping Dimensions (WxHxD) | mm | 1,023 x 896 x 413 | |
|
Installation |
Liquid Pipe | mm / in | 6.35, 1/4″ |
| Gas Pipe | mm / in | 15.8, 5/8″ | |
| Max. Allowable Piping Length | m | 50 | |
| Max. Allowable Piping Height | m | 30 | |
| Pre-charged Length | m | 20 | |
| Operating Range | Cooling | ºC | -15 to 50 |
| Heating | ºC | -20 to 24 | |
