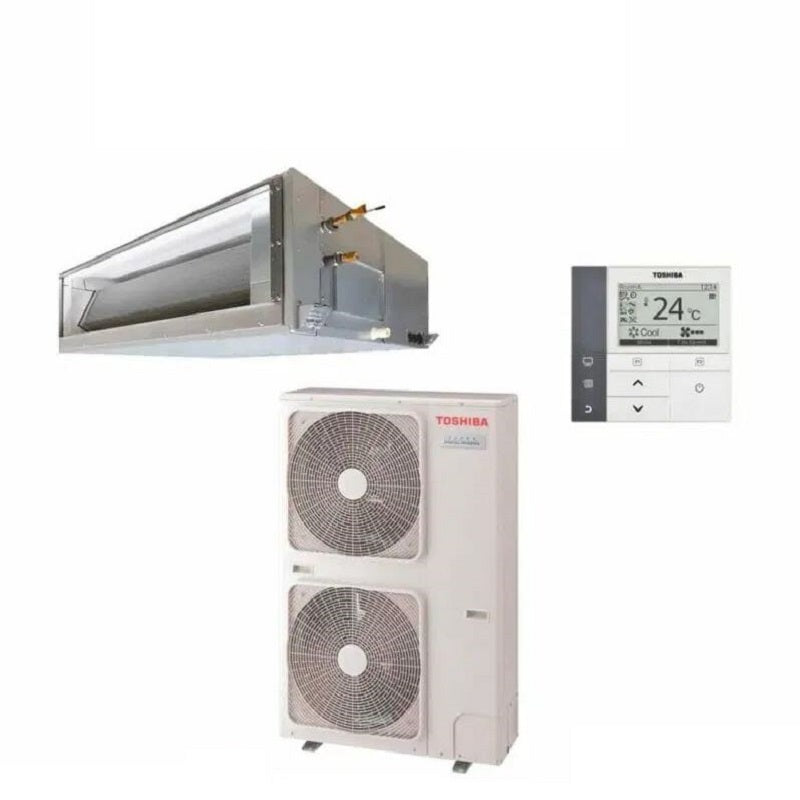

TOSHIBA RAV-RM2801DTP-E2 / RAV-GM2801AT8-A 24.0kW Digital Inverter High Static Ducted System | 3 Phase
Indoor: RAV-RM2801DTP-E2
Outdoor: RAV-GM2801AT8-A
Backlit Wired Control with Weekly Timer: RBC-AMS55E-ES
24 kW Cooling
27 kW Heating
DIGITAL INVERTER HIGH STATIC | R32
Specifications
| Indoor Model | RAV-RM2801DTP-E2 | |
| Outdoor Model | RAV-GM2801AT8-A | |
| Cooling Capacity (Range) | kW | 24.0 [4.6 – 27.0] |
| EER | 3.01 | |
| Heating Capacity (Range) | kW | 27.0 [4.6 – 31.5] |
| COP | 3.59 | |
| Maximum Operating Current | A | 23.00 |
| Air flow (H / M / L) | l/s | 1333 / 1166 / 972 |
| External Static | Pa | 50 – 250 |
| Dimensions – Indoor (H x W x D) | mm | 448 x 1400 x 900 |
| Dimensions – Outdoor (Hx W x D) | mm | 1550 x 1010 x 370 |
| Weight – Indoor / Outdoor | kg | 97 / 142 |
| Sound Pressure Level Indoor / Outdoor | dB(A) | 46 / 63 |
| Operating Range Cooling | °C db | -15 to 46 |
| Operating Range Heating | °C db | -27 to 15 |
| Pipe Sizes (Liquid / Gas) | mm | 12.70 / 28.60 |
| Maximum Pipe Length / Lift | m | 100 / 30 |
| Maximum Pre-charged Length | m | 30 |
| Power Supply | 3ph/380-415V/50Hz | |
