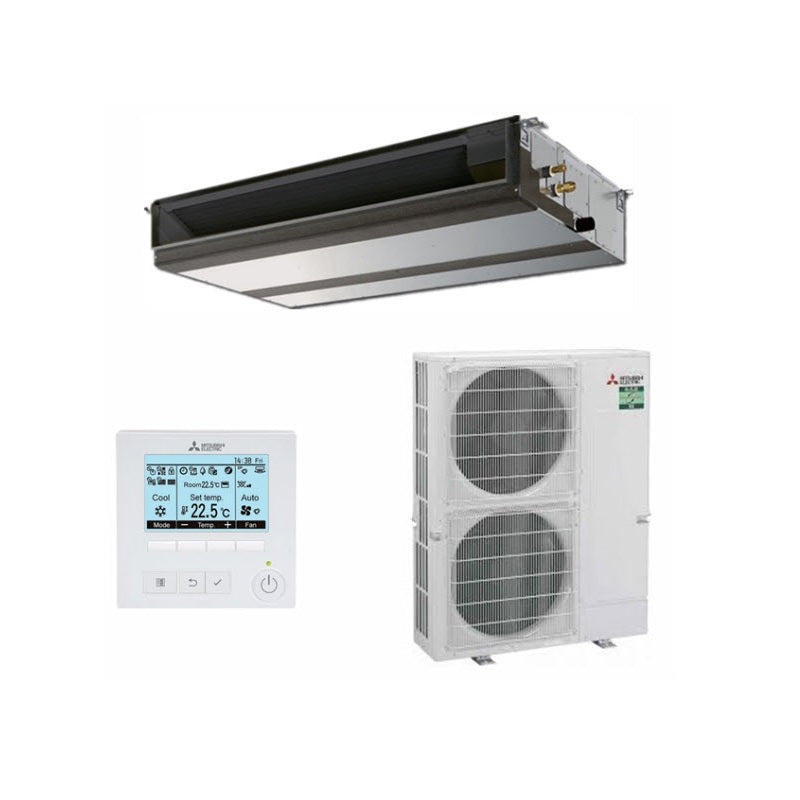

MITSUBISHI ELECTRIC PEAD-M125JAADR1.TH / PUZ-ZM125YKA-A.TH 12.5kW Ducted Air Conditioner System 3 Phase
PEAD-M125JAADR1.TH : Indoor – Ducted with Drain Pump
PUZ-ZM125YKA-A.TH : R32 Power Inverter Outdoor – Single Phase
PAR-40MAA : Wired Control with Back Light
12.5 kW Cooling
14.0 kW Heating
Power Inverter | ZM Series
Specifications
Ceiling-Concealed (PEAD-ZM Series) | ||||
Indoor Unit | PEAD-M125JAA(D) | |||
Outdoor Unit
Refrigerant |
PUZ-ZM 125YKA | |||
R32 | ||||
Power Supply | Y:400V, Three-phase, 50Hz | |||
Capacity | (kW) | 5.5-12.5-14.0 | ||
[Min-Rated-Max] | ||||
Total Input [Rated] | (kW) | 3.66 | ||
AEER/EER | 3.28 / 3.41 | |||
Cooling | AEER [Part-load %] *1 | – | ||
6.40 | ||||
Running Current [Rated] | A | |||
Sound In (Lo-Mid-Hi)
Pressure |
dB(A) |
36-40-44 | ||
Level Out (PWL) | 50 (70) | |||
Air Volume (In) Lo-Mid-Hi | L/S | 492-592-700 | ||
Capacity |
(kW) |
5.10-14.0-16.0 |
||
[Min-Rated-Max] | ||||
Total Input [Rated] | (kW) | 3.52 | ||
Heating |
ACOP/COP
Running Current [Rated] (mm) |
3.81 / 3.97 | ||
6.20 | ||||
Sound In (Lo-Mid-Hi) | dB(A) | 36-40-44 | ||
Level Out (PWL)
Air Volume (In) Lo-Mid-Hi |
dB(A) | 52 (70) | ||
492-592-700 | ||||
Max. Running Current | A | 13.90 | ||
Indoor Unit |
Input [Rated] | kW | (0.36) / 0.34 | |
Dimensions [HxWxD] | mm | 250 x 1400 x 732 | ||
Weight | kg | 40 | ||
Static Pressure | Pa | 35 / 50 / 70 / 100 / 125 | ||
Outdoor Unit |
Dimensions [HxWxD] | mm | 1338 x 1050 x 330 (+40) | |
Weight | kg | 112 | ||
Breaker Size | A | 16 | ||
Ext. Piping | Diameter [Gas/Liquid] | mm | 15.88 / 9.52 | |
Max. Length/Height | m | 75 / 30 | ||
Guaranteed Cooling *2 | °C | -5(-15) ~ 52 | ||
Operating Range
[Outdoor] Supply Air Duct |
Heating | °C | -20 ~ 21 | |
mm | 1360 x 178 | |||
Precharge Refrigerant | kg | 4 (30m) | ||
Additional Refrigerant |
per M(g) |
40 |
