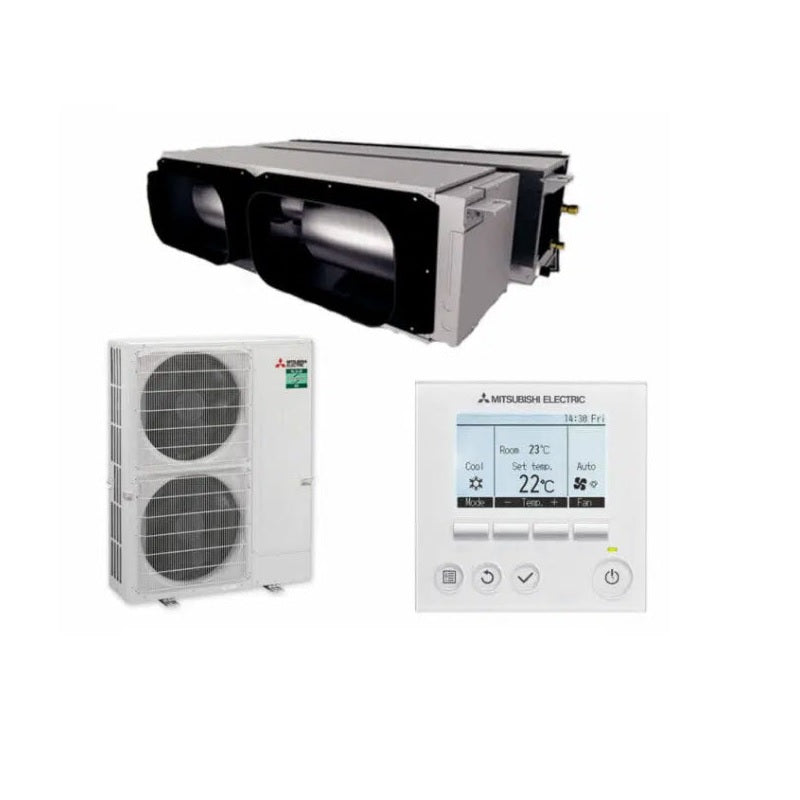

MITSUBISHI ELECTRIC PEAM140HAAVKIT 14.0 kW Ducted Air Conditioner System 1 Phase
PEA-M140HAA Indoor- 2 Piece Ducted
PUZ-ZM140VKA-A.TH R32 Outdoor – Single Phase
Includes PAR-40MAA Backlit Controller
PEAM140HAAVKIT System
14.0kW Cool / 16.0kW Heat
Specifications
| Ceiling-Concealed (PEA-M HAA Series) | |||
| Indoor Unit | PEA-M140HAA | ||
|
Outdoor Unit |
PUZ-ZM 140VKA-A | ||
| Refrigerant | R32 | ||
| Power supply (V, phase, Hz) | Outdoor | V:230V, Single-phase, 50Hz Y:400V, Three-phase, 50Hz | |
|
Cooling |
Capacity [Min-Rated-Max] | (kW) | 6.2-14.0-15.3 |
| Total Input [Rated] | (kW) | 4.19 | |
| AEER/EER | 3.26 / 3.34 | ||
| AEER [Part-load %] *1 | – | ||
| Running Current [Rated] | A | 18.30 | |
|
Sound Pressure Level |
In (Lo-Mid2- Mid1-Hi) (SPL) *3 |
35-38-42-45 |
|
| Out (PWL) | 50 (70) | ||
|
Air Volume
(Lo-Mid2-Mid1-Hi) |
L/S *3 |
700-800-900-1000 |
|
|
Heating |
Capacity [Min-Rated-Max] (kW) | 5.7-16.0-18.0 | |
| Total Input [Rated] | (kW) | 3.97 | |
| ACOP/COP | 3.92 / 4.03 | ||
| ACOP (Part-load %) *1 | – | ||
| Running current (Rated) | A | 17.70 | |
|
Sound Pressure Level |
In (Lo-Mid2 Mid1-Hi) (SPL) *3 |
35-38-42-45 |
|
| Out (PWL) | 52 (71) | ||
|
Air Volume In
(Lo-Mid2-Mid1-Hi) |
L/S *3 | 700-800-900-1000 | |
| Max. Running Current | A | 32.20 | |
|
Indoor Unit |
Input (Cool Heat) (Rated) | kW *3 | 0.477 / 0.477 |

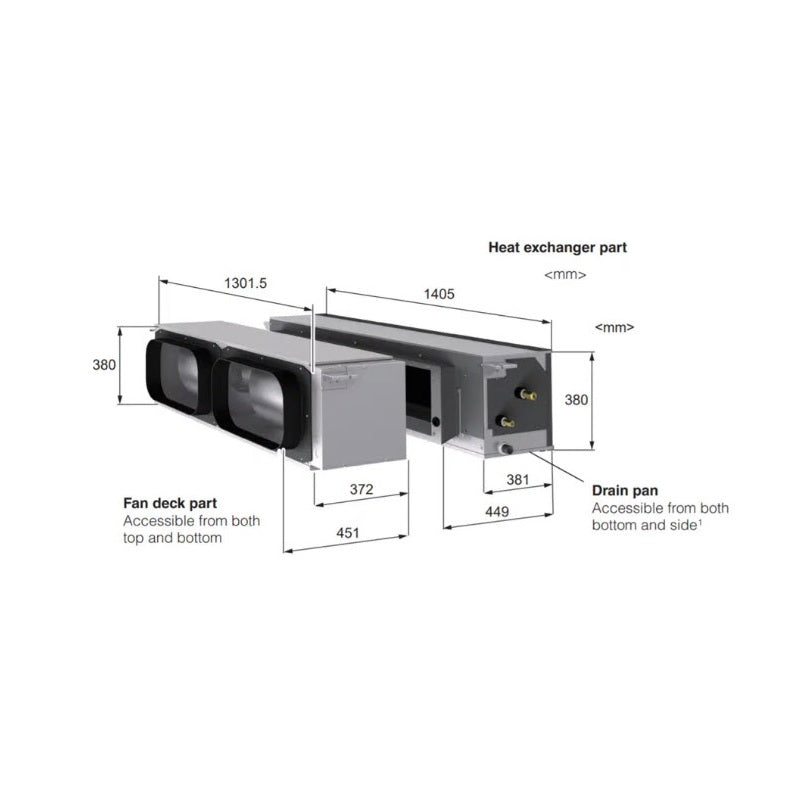

| Dimensions [HxWxD] | mm | 380 x 1405 x 900 | |
| Weight | kg | 66 | |
| Static Pressure | Pa | 50 / 100 /1 50 | |
|
Outdoor Unit |
Dimensions [HxWxD] |
mm |
1338x1050x330 (+40) |
| Weight | kg | 113 | |
| Breaker Size | A | 40 | |
|
Piping |
Diameter [Gas/Liquid] | mm | 15.88 / 9.52 |
| Max. Length/Height | m | 75 / 30 | |
| Guaranteed Operating Range (Outdoor) | Cooling (°C) *2 | -5(-15)−52 | |
| Heating (°C) | -20−21 | ||
| Supply Air Duct | mm | 1325 x 266 | |
| Return Air Duct | mm | 2 x 400 (1 x 16”) | |
| Precharge Refrigerant R32 | kg | 4 (30m) | |
|
Additional Refrigerant |
Per M (g) |
60 |
|
