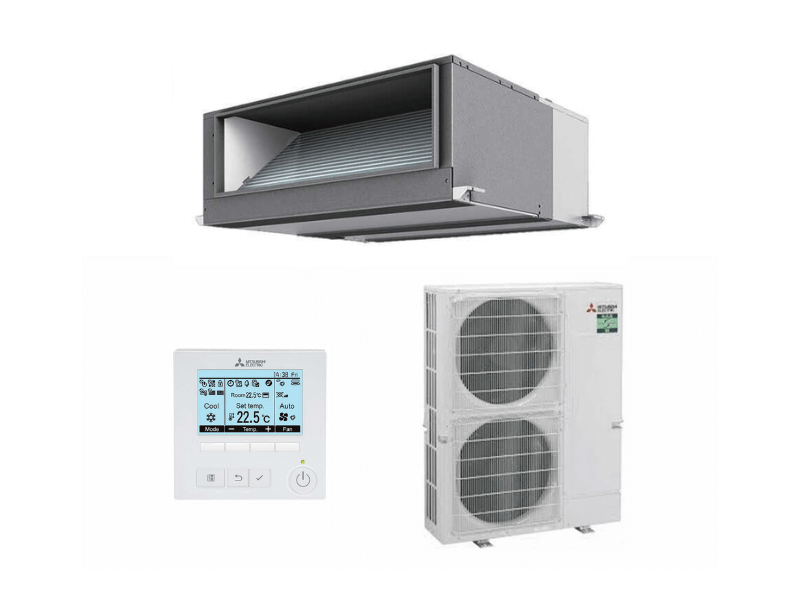

Mitsubishi Electric PEA-M180LAA 18kW Ducted Air Conditioner System | Three Phase
Advanced technology makes Mitsubishi Electric's 3 Phase PEA-M180LAA Power Inverter ducted air conditioning the premium choice for creating your living environment. It provides energy savings when compared to non-inverter models through the constantly varied system output. This helps create your perfect living environment by cooling or heating your home more rapidly and maintaining the desired temperature - all while using less energy.
Features:
- Heating or cooling multiple rooms
- Wide Range of Static Pressures with 3 Fan Speeds
18.0 kW Cooling / 20.0 kW Heating Capacity
PEA-M180LAA Indoor- Ducted
PUZ-ZM180YKA-A.TH R32 Outdoor 3 Phase
PAR-41MAAM : Backlit Controller
PEAM180LAAYKIT System
Specifications
| Indoor unit | PEA-M180LAA.TH | ||
|---|---|---|---|
| Outdoor unit | PUZ-ZM180YKA-A.TH | ||
| Refrigerant | R32 | ||
| Cooling | Capacity (Min-Rated*1-Max) | kW | 4.9-18.0-20.0 |
| Air Volume (In) Lo-Mid-Mid2-Hi | L/S | 600-833-1017-1200 | |
| Total Input (Rated)*1 | kW | 5.92 | |
| Heating | Capacity (Min-Rated*1-Max) | kW | 5.4-20.0-22.4 |
| Air Volume (In) Lo-Mid-Mid2-Hi | L/S | 600-833-1017-1200 | |
| Total Input (Rated)*1 | kW | 5.10 | |
| Indoor unit | Dimensions (HxWxD) | mm | 470x1370x1120 |
| Weight | kg | 88 | |
| Outdoor unit | Dimensions (HxWxD) | mm | 1338×1050×330(+40) |
| Weight | kg | 116 | |
| System Name | PEAM180LAAYKIT | ||
