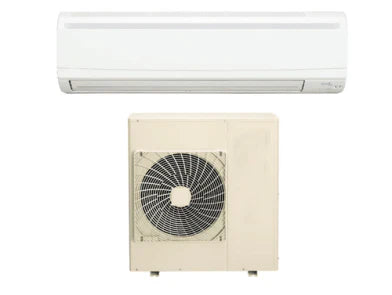

Daikin Sky Air FAA71B-VC2Y 7.1kW Reverse Cycle Split System Air Conditioner
The Daikin Sky Air FAA71B-VC2Y is a pinnacle of comfort and efficiency, designed for Australian environments. With its compact and sophisticated design, it seamlessly integrates into any space. The unit features auto swing and wide-angle louvers for even temperature distribution. It offers flexibility with 6-direction refrigerant piping and easy front maintenance. Interlock control and DIII-NET communication enhance energy efficiency and connectivity. The flat panel and non-flocking flaps ensure easy cleaning and minimal condensation. Ideal for long rooms, it provides extra-high airflow for optimal comfort.
Indoor: FAA71BVMA
Outdoor: RZAV71C2Y1
Specifications
| Model Name | Indoor unit | FAA71BVMA |
| Outdoor unit | RZAV71C2Y1 | |
| Power supply | 3 Phase, 380-415V, 50Hz | |
| Cooling capacity Rated (Min. – Max.) | 7.1 (3.2-8.0) kW | |
| Heating capacity Rated (Min. – Max.) | 8.0 (3.5-9.0) kW | |
| Power consumption Cooling | 2.22 kW | |
| Heating | 2.37 kW | |
| EER Cooling | 3.20 kW/kW | |
| COP Heating | 3.38 kW/kW | |
| AEER Cooling | 3.13 | |
| ACOP Heating | 3.31 | |
| TCSPF (Cooling) Commercial / Residential | Hot: 4.85 / 4.46 | |
| Average | 4.88 / 3.92 | |
| Cold | 5.19 / 4.00 | |
| HSPF (Heating) Commercial / Residential | Hot: 4.47 / 4.46 | |
| Average | 4.16 / 3.94 | |
| Cold | 3.79 / 3.52 | |
| Indoor unit Colour | Fresh White | |
| Airflow rate (H / M / L) | 300 / 267 / 233 /s | |
| Sound pressure level (H / M / L) | 45.0 / 42.0 / 40.0 dB(A) | |
| Dimensions (HXWXD) | 290X1,050X238 mm | |
| Machine weight | 13 kg | |
| Certified operation range Cooling | 14 to 25 °CWB | |
| Heating | 15 to 27 °CDB | |
| Outdoor unit Colour | Ivory White | |
| Compressor Type | Hermetically sealed swing type | |
| Motor output | 2.40 kW | |
| Refrigerant charge (R-32) | 2.60 kg (Charged for 30 m) | |
| Sound pressure level Cooling / Heating | 48 / 50 dB(A) | |
| Night quiet mode | 44 dB(A) | |
| Sound power level | 67 dB(A) | |
| Dimensions (HXWXD) | 990X940X320 mm | |
| Machine weight | 69 kg | |
| Certified operation range Cooling | -5 to 50 °CDB | |
| Heating | -15 to 15.5 °CWB | |
| Piping connections Liquid (Flare) | o/ 9.5 mm | |
| Gas (Flare) | o/ 15.9 mm | |
| Drain Indoor unit | VP13 (I.D. o/ 13XO.D. o/ 18) mm | |
| Outdoor unit | o/ 26.0 (Hole) mm | |
| Max. interunit piping length | 75 m (Equivalent length 90) | |
| Max. installation height difference | 30 m | |
| Heat insulation | Both liquid and gas piping | |
