Overview

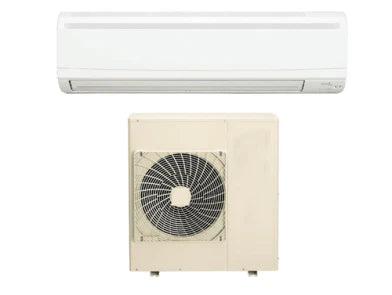

Daikin Sky Air FTXC100A-AV 10kW Reverse Cycle Split System Air Conditioner
The Daikin Sky Air FTXC100A-AV 10kW Reverse Cycle Split System is a pinnacle of comfort and efficiency. Designed with a sleek and compact style, it features advanced air distribution, ensuring even temperatures throughout any space. The system offers flexibility with its 6-direction refrigerant piping and easy maintenance access. With energy-saving interlock controls and DIII-NET communication capability, it integrates smoothly into modern building systems. Ideal for both residential and commercial settings, it guarantees reliable climate control with minimal noise and maximum ease of use.
Indoor Unit: FTXC100AV1A
Outdoor Unit: RXC100AV1A
Specifications
Model Name |
Indoor unit | FTXC100AV1A | ||
| Outdoor unit | RXC100AV1A | |||
| Power supply | 1 Phase, 220-240V, 50Hz | |||
| Cooling capacity1,3 Rated (Min. – Max.) | kW |
10.0 (5.0-11.2) |
||
| Heating capacity2,3 Rated (Min. – Max.) | kW |
11.2 (5.1-12.5) |
||
| Power consumption | Cooling1 | kW | 3.11 | |
| Heating2 | kW | 3.48 | ||
| EER | Cooling | kW/kW | 3.22 | |
| COP | Heating | kW/kW | 3.22 | |
| AEER | Cooling | 3.17 | ||
| ACOP | Heating | 3.17 | ||
| TCSPF (Cooling) Commercial / Residential | Hot | 5.03 / 4.63 | ||
| Average | 5.13 / 4.18 | |||
| Cold | 5.49 / 4.33 | |||
| HSPF (Heating) Commercial / Residential | Hot | 4.66 / 4.64 | ||
| Average | 4.25 / 3.95 | |||
| Cold | 3.77 / 3.42 | |||
| Indoor unit | Colour | Fresh white | ||
| Airflow rate (H / M / L) | /s | 433 / 383 / 317 | ||
| m3/min | 26.0 / 23.0 / 19.0 | |||
| Sound pressure level4 (H / M / L) | dB(A) | 49.0 / 45.0 / 41.0 | ||
| Sound power level (H / M / L) | dB(A) | 65 / 62 / 58 | ||
| Dimensions (HXWXD) | mm | 340X1,200X240 | ||
| Machine weight | kg | 17 | ||
| Certified operation range | Cooling | °CWB | 14 to 25 | |
| Heating | °CDB | 15 to 27 | ||
| Outdoor | Colour | Ivory White | ||
| unit | Compressor | Type | Hermetically sealed swing type | |
| Motor output | kW | 3.3 | ||
| Refrigerant charge (R-32) | kg |
3.75 (Charged for 30 m) |
||
| Sound pressure level 4 | Cooling / Heating | dB(A) | 51 / 53 | |
| Night quiet mode | dB(A) | 47 | ||
| Sound power level | dB(A) | 70 | ||
| Dimensions (HXWXD) | mm | 1,430X940X320 | ||
| Machine weight | kg | 93 | ||
| Certified operation range | Cooling | °CDB | -5 to 50 | |
| Heating | °CWB | -15 to 15.5 | ||
| Piping connections | Liquid (Flare) | mm | o/ 9.5 | |
| Gas (Flare) | mm | o/ 15.9 | ||
| Drain | Indoor unit | mm | VP13 (I.D.o/ 13XO.D. o/ 18) | |
| Outdoor unit | mm | o/ 26.0 (Hole) | ||
| Max. interunit piping length | m | 75 (Equivalent length 90) | ||
| Max. installation height difference | m | 30 | ||
| Heat insulation | Both liquid and gas piping | |||
