Overview

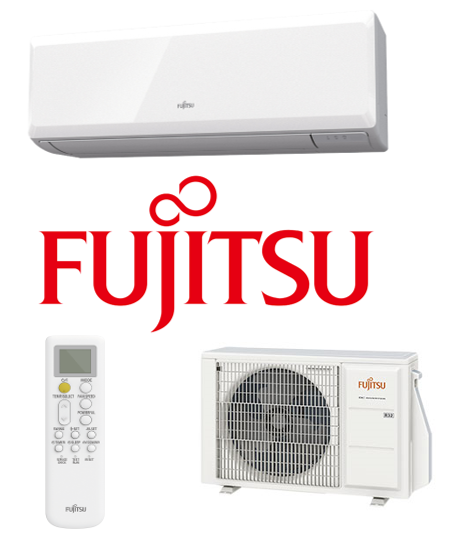

Fujitsu ASTH09KNCA 2.5kW Comfort Reverse Cycle Inverter Split System
The Fujitsu ASTH09KNCA 2.5kW Comfort Reverse Cycle Inverter Split System is designed to deliver efficient and reliable climate control for your home. With a 2.5kW cooling capacity and a 3.2kW heating capacity, this system offers high energy efficiency and performance in both cooling and heating modes. The sleek, modern design seamlessly integrates into any space, making it an ideal solution for year-round comfort.

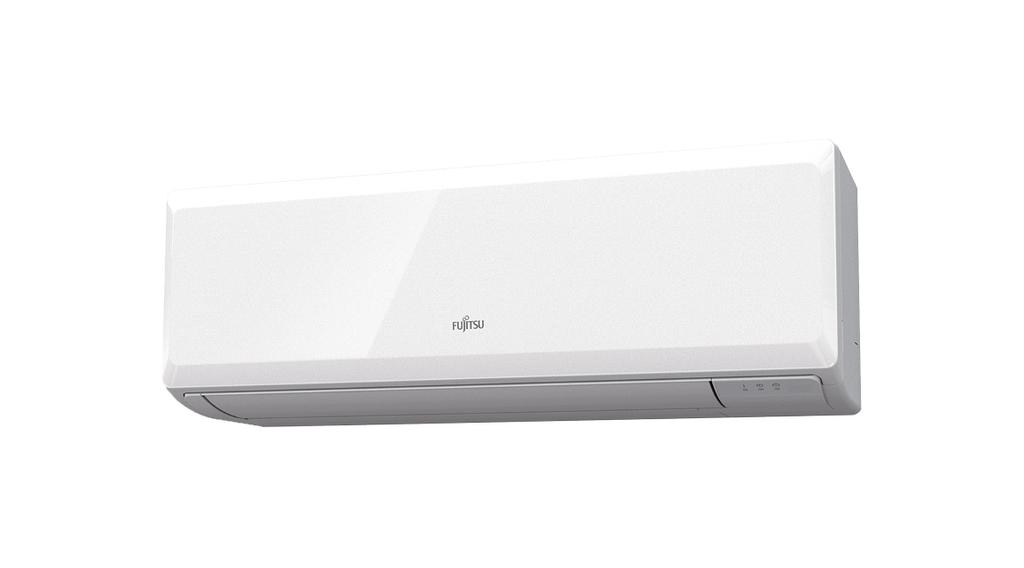

Indoor Unit: ASTH09KNCA

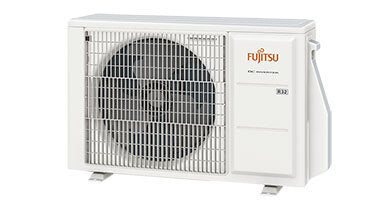

Outdoor Unit: AOTH09KNCA
Specifications
| Model No. | Indoor Unit | ASTH09KNCA | ||
| Outdoor Unit | AOTH09KNCA | |||
| Power Source | V/ Ph / Hz | 220-240 / 1 / 50 | ||
| Capacity | Cooling | kW | 2.5 | |
| Heating | kW | 3.2 | ||
| Input Power | Cooling/Heating | kW | 0.59 | |
| EER | Cooling | kW/kW | 4.24 | |
| COP | Heating | 4.16 | ||
| Star Rating | Cooling: Hot/Average/Cold | 5 / 4.5 / 4.5 | ||
| Heating: Hot/Average/Cold | 3.5 / 3 /2.5 | |||
| Max. Operating Current | A | 9 | ||
| Recommended Breaker Size | A | 15 | ||
| Sound Pressure Level | Indoor (Cooling) | Quiet/High | dBA | 22 / 46 |
| Indoor (Heating) | Quiet/High | 27 / 46 | ||
| Outdoor (Cooling / Heating) | High | 49 / 51 | ||
| Sound Power Level | Outdoor | High | 62 | |
| Airflow Rate | Indoor (Cooling) | Quiet/High | m3/h | 240 / 630 |
| Indoor (Heating) | Quiet/High | 260 / 630 | ||
| Dimensions (H x W x D) | Indoor | mm | 270 x 784 x 224 | |
| Outdoor | 541 x 663 x 290 | |||
| Net Weight | Indoor | kg | 8 | |
| Outdoor | 25 | |||
| Connection Pipe Diameter (Liquid / Gas) | mm | 6.35 / 9.52 | ||
| Drain Hose Diameter (I.D./O.D.) | 13.0 / 15.0 to 16.8 | |||
| Max Pipe Length (Pre-Charge) | m | 20 (15) | ||
| Max Height Difference | 15 | |||
| Operation Range | Outdoor | Cooling | OCDB | -10 to 50 |
| Heating | -15 to 24 | |||
| Refrigerant | Type (Global Warming Potential) | R32 | ||
| Charge | kg | 590 | ||
