Overview

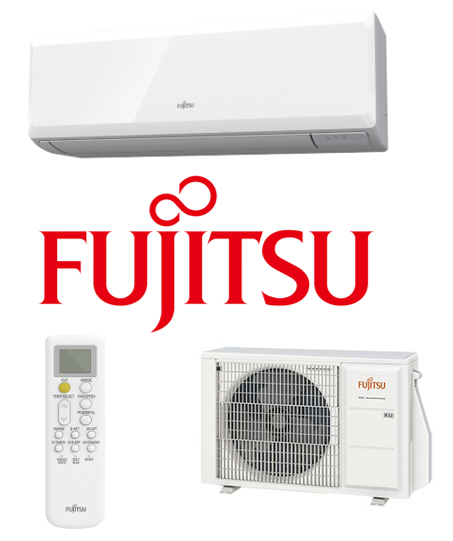

FUJITSU ASTH12KNCA 3.4kW Comfort Reverse Cycle Inverter Split System
The Fujitsu ASTH12KNCA is the ideal solution for maintaining a comfortable climate all year round. With a cooling capacity of 3.4kW and a heating capacity of 4.0kW, this reverse cycle inverter split system offers high energy efficiency for both cooling and heating. Compact and powerful, it's designed to deliver optimal performance in any setting. Enjoy superior comfort and reliable operation with this advanced system, perfect for Australian homes.

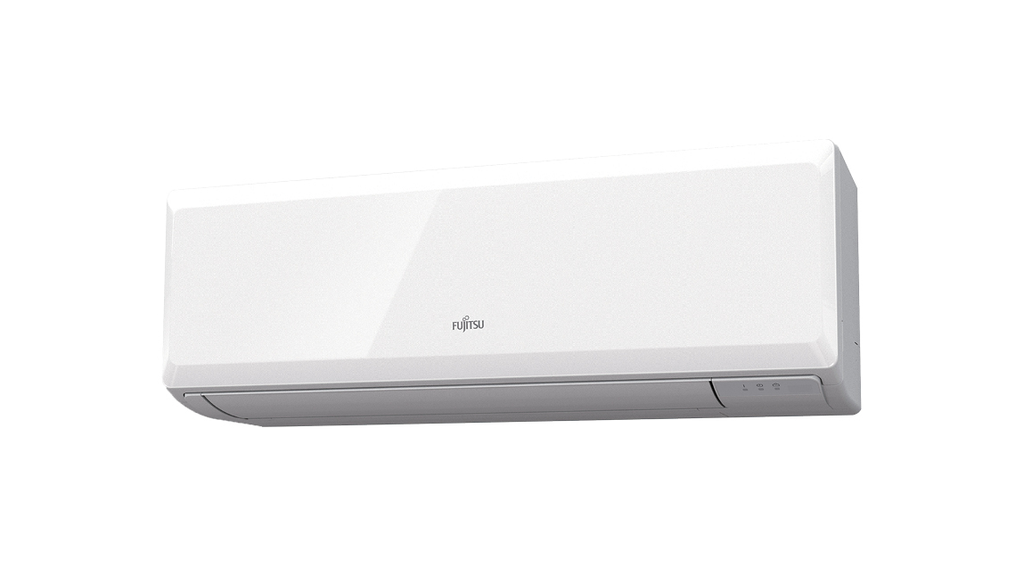

Indoor: ASTH12KMTC

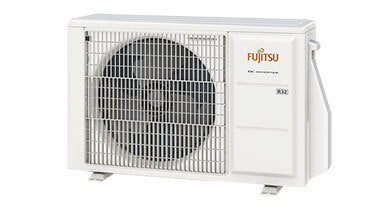

Outdoor: AOTH12KMTC
Specifications
| Model No. | Indoor Unit | ASTH12KNCA | ||
| Outdoor Unit | AOTH12KNCA | |||
| Power Source | V/ Ph / Hz | 220-240 / 1 / 50 | ||
| Capacity | Cooling | kW | 3.4 | |
| Heating | kW | 4 | ||
| Input Power | Cooling/Heating | kW | 0.96 | |
| EER | Cooling | kW/kW | 3.54 | |
| COP | Heating | 4 | ||
| Star Rating | Cooling: Hot/Average/Cold | 4 / 3.5 / 4 | ||
| Heating: Hot/Average/Cold | 3 / 2.5 / 2 | |||
| Max. Operating Current | A | 9 | ||
| Recommended Breaker Size | A | 15 | ||
| Sound Pressure Level | Indoor (Cooling) | Quiet/High | dBA | 20 / 40 |
| Indoor (Heating) | Quiet/High | 22 / 42 | ||
| Outdoor (Cooling / Heating) | High | 50 / 50 | ||
| Sound Power Level | Outdoor | High | 65 | |
| Airflow Rate | Indoor (Cooling) | Quiet/High | m3/h | 270 / 700 |
| Indoor (Heating) | Quiet/High | 3301780 | ||
| Dimensions (H x W x D) | Indoor | mm | 270 × 834 × 215 | |
| Outdoor | 541 x 663 x 290 | |||
| Net Weight | Indoor | kg | 9.5 | |
| Outdoor | 25 | |||
| Connection Pipe Diameter (Liquid / Gas) | mm | 6.35 / 9.52 | ||
| Drain Hose Diameter (I.D./O.D.) | 13.0 / 15.0 to 16.8 | |||
| Max Pipe Length (Pre-Charge) | m | 20 (15) | ||
| Max Height Difference | 15 | |||
| Operation Range | Outdoor | Cooling | OCDB | -10 to 50 |
| Heating | -15 to 24 | |||
| Refrigerant | Type (Global Warming Potential) | R32 | ||
| Charge | kg | 700 | ||
